Axicon Lenses: Precision Light Shaping in Modern Optics

Estimated reading time: 4 minutes

Axicons are not your regular lenses. They don’t focus light to a point, instead they stretch it into a long, narrow line. As a result, this unique design creates a Bessel beam – a beam that stays focused over a long range.

That’s a game-changer. Especially for high-precision tasks. Think eye surgery, optical coherence tomography, or optical tweezers. In these fields, beam stability isn’t optional – it’s essential.

What Makes an Axicon Lens So Special?

An axicon lens is cone-shaped. It’s different from the curved lenses you’re used to. This shape transforms a regular Gaussian beam into a Bessel beam.

Gaussian beams are common in lasers. They have strong intensity in the center but weaken at the edges. They also spread out with distance. Not ideal when you need sharp, long-range accuracy.

Bessel beams, formed by axicons, don’t spread. Their core remains narrow.
Their energy stays stable over long distances.
That’s the advantage.

Where Do We Use Axicon Lenses?

They are used in:

• Medical lasers
• Material processing
• Metrology
• Scientific optics setups

Wherever tight beam control is needed, axicons are basically part of the solution.

Axicon Lenses and Optical Diffusers

An optical diffuser spreads light. It breaks up hot spots and evens out intensity.
 Pair it with an axicon, and you get both control and uniformity.

Together, they work in:

• Laser homogenizers
• High-power illumination systems
• Surface inspection tools

This combination ensures not only smooth, stable but also accurate light delivery.

Axicons and Prisms: Better Together

Prisms bend light. Axicons reshape it. As a matter of fact, in advanced optical systems, they often work side-by-side.

This pairing:

• Improves beam alignment
• Reduces system errors
• Boosts accuracy in laser tasks

Whether in labs or manufacturing, it’s a proven setup.

Axicon Lenses in Eye Surgery and OCT

In eye surgery, there’s surely no room for error. A sharp, stable beam makes a big difference.
 Axicons create that beam. They particularly enable safer, more precise procedures.

In optical coherence tomography, detail matters. Axicons improve resolution and depth of field. Better imaging means better diagnosis.

Industrial Benefits of Axicons

In material processing, beam quality affects the result.
A stable beam gives cleaner cuts, stronger welds, and faster results.

Axicons help in:

• Laser drilling
• Micro-welding
• Precision engraving

Axicon Lenses improve energy delivery. They increase throughput and also boost quality across the board.

Custom Axicon Design: Why It Matters

Axicons are not one-size-fits-all. Rather, each application needs a specific design.

Key factors to consider:

• Material: fused silica, ZnSe, or others
• Axicon angle: controls beam shape
• Coating: for transmission and durability
• Tolerance: must match your laser’s specs

Working with the right expert indeed helps you get it right from the start.

A Smart Move for Any Optical System

If your work depends on laser precision, an axicon lens could be a perfect fit. Axicons brings new level of control. They not just enhance system performance but also reduce beam drift and improve results.

But picking the right axicon lens requires know-how. Design. Material. Beam specs.
It altogether has to line up.

Talk to an Optics Expert Today

Need beam shaping for lasers? Need stable light for imaging or micromanipulation? Thinking about adding axicons to your system?

Don’t guess. Ask an expert.
From simple axicons to custom beam-shaping modules – the right support saves time, cost, and effort.

Need help selecting the right axicon? Talk to a laser optics expert today.

Get the perfect match for your beam, wavelength, and also system.

Let precision start with the right optic certainly.

Additionally, to stay updated with the latest developments in STEM research, visit ENTECH Online. Basically, this is our digital magazine for science, technology, engineering, and mathematics. Further, at ENTECH Online, you’ll find a wealth of information.

FAQs

What’s the main difference between an axicon and a standard lens?

A standard lens focuses light into a spot. Instead, an axicon shapes light into a long, narrow line. Consequently, that’s why it’s used in high-precision applications.

Can axicons handle high-powered lasers?

Yes, surely. Properly made axicons generally can handle high-energy beams with minimal distortion or heat effects.

Are axicons useful in OCT and medical imaging?

Yes, undoubtedly. They improve both image depth and resolution, making them ideal for optical coherence tomography and related fields.

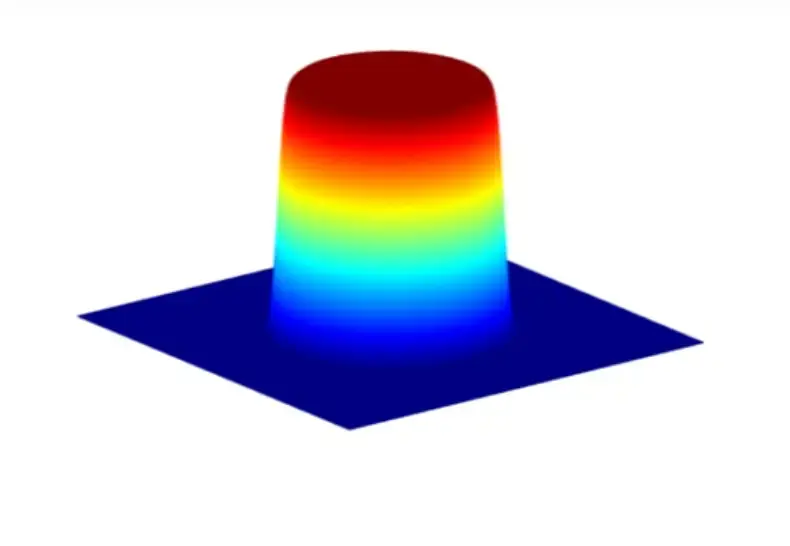

Image Source: holoor.co.il/ (This image is from their workshop)
