How Bulletproof Glass is Made for Maximum Protection

Bulletproof glass protects you by preventing bullets and objects from passing through. The fascinating process behind the strength and clarity of bulletproof glass becomes clear when you understand how it is made. Makers put together strong but see-through things. So, they build with fresh materials and methods, layering glass and plastic. Heat and pressure bond these layers together, ensuring the glass is both resilient and long-lasting. Thus, the combination of science and engineering guarantees that bulletproof glass performs effectively in challenging conditions.

Materials Used in Making Bulletproof Glass

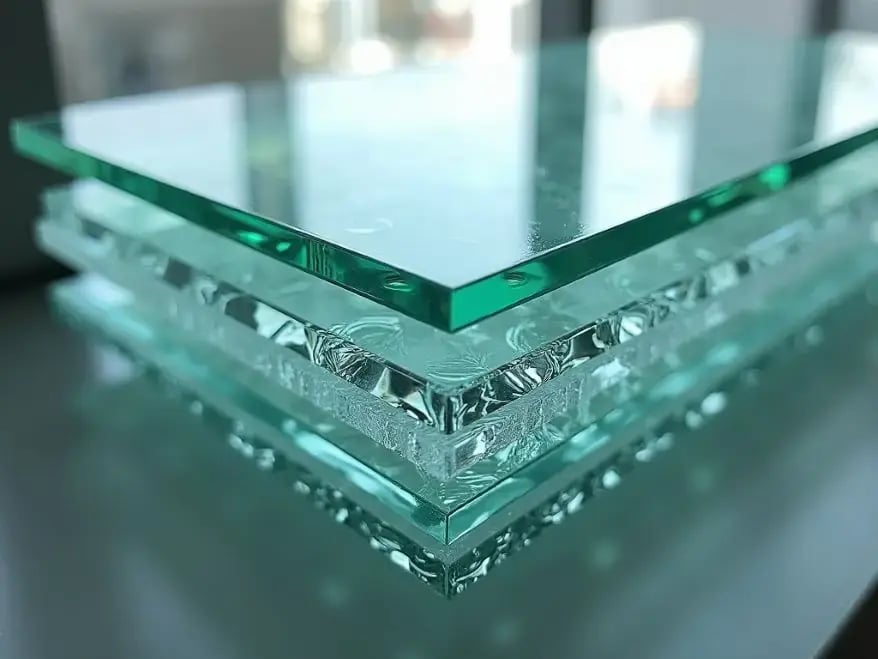

Glass Layers: The Backbone of Bulletproof Glass

Glass layers are the base of bulletproof glass. They use tempered glass, which is stronger than normal glass. Therefore, tempered glass can handle pressure without breaking. In fact, manufacturers stack many layers to make it tougher. Obviously, each layer helps absorb energy from hits.

New materials like Aluminum Oxynitride (ALON) are also included. ALON is light and strong. It blocks powerful bullets with thinner layers. This makes it great for military and security use. Spinel ceramics are another choice. They are hard and dense. They offer thinner protection but work as well as regular glass.

Tip: Glass layers are key to stopping bullets. They spread out the force of the hit.

Polycarbonate Sheets: Enhancing Flexibility and Strength

Polycarbonate sheets make bullet-resistant glass flexible and strong. These sheets are light and tough. Basically, they stop the glass from breaking apart. Also, polycarbonate absorbs energy from hits. Thus, this lowers the chance of a bullet going through.

A study compared polycarbonate to acrylic materials. Results showed polycarbonate is stronger and more flexible:

Material	Impact Strength (KJ/M2)	Transverse Flexural Strength (MPa)	Elastic Modulus (N/M2)
Polycarbonate (A)	233.43	69.12	2.684
Injectable Acrylic (B)	29.89	60.00	2.366
Heat Cure Acrylic (C)	7.53	77.03	4.541

Polycarbonate sheets are vital for making flexible and strong bulletproof glass. They also last longer in tough conditions.

Laminates: Bonding Layers for Durability

Laminates stick glass and polycarbonate layers together. Basically, they hold the layers tightly using heat and pressure. Laminates make bullet-resistant glass stronger and prevent it from falling apart.

Studies show laminates absorb energy well. They also lower the chance of a bullet breaking through. For example:

Composite Type	Key Findings	Failure Modes
CFRP	High specific strength, energy absorption	Delamination, fiber breakage, matrix cracking
GFRP	Weight-saving potential, energy absorption	Delamination, interfacial debonding
KFRP	Complex damage mechanisms	Delamination, shear plugging

Note: Laminates are important for strength. They help the glass survive many hits without breaking.

Optional Coatings: Boosting Clarity and Preventing Scratches

Optional coatings make bulletproof glass work better. Indeed, they improve clarity and stop scratches. These coatings also make cleaning and upkeep easier.

An anti-reflective coating is a popular choice. Particularly, it cuts down glare and helps you see clearly. This is helpful in bright light. Another option is a scratch-resistant coating. It protects the glass from daily wear. As a result, the surface stays smooth and clear for longer.

Some coatings keep water and dirt away. Specifically, these hydrophobic coatings make cleaning simple. They stop water from forming drops on the glass. This is useful in wet or humid weather.

Manufacturers add these coatings at the end of production. They use special methods to make the coatings stick well. This ensures they last a long time.

Tip: Pick coatings based on your needs. Anti-reflective coatings help with visibility. Scratch-resistant ones are best for busy areas.

Optional coatings make bulletproof glass look better and last longer. They keep the glass strong and dependable in different conditions.

How Bulletproof Glass is Made – The Process Explained

Combining Glass and Polycarbonate for Strength

To make bullet-resistant glass, glass and polycarbonate are layered. This creates a strong shield. The process starts with stacking glass and polycarbonate sheets. Actually, each layer has a purpose. The outer glass layer protects against weather and absorbs hits. The inner polycarbonate layer is lighter and stops splinters. Therefore, together, they make the glass tough and lightweight. It can handle multiple shots from rifles like the AR-15. The outer glass breaks first to absorb force. The polycarbonate then takes care of the remaining energy.

Joining Layers with Heat and Pressure

Joining layers is key in making bulletproof glass. Heat and pressure fuse the layers together. This makes the glass strong against bullets. The layers are stacked and placed in a special machine. Heat over 300°F and pressure above 10 atmospheres are applied. This creates a solid, bubble-free glass. Thus, the process keeps the glass strong and durable. It ensures the glass can handle impacts well. Particularly, this careful step is vital for bullet-resistant strength.

Laminating to Build Ballistic Glass

Lamination is the last step in making ballistic glass. Extra layers are added until the glass is thick enough. This improves its ability to stop bullets. The lamination uses a large industrial cooker. This bonds the layers tightly. Thus, the result is a strong and dependable glass. Ballistic glass can weigh 11 pounds per square foot. It is 1.375 inches thick. This makes it useful for many building designs. Some types have BallistiSHOCK technology. Indeed, this sends bullets back toward the shooter. COUNTERFIRE technology is also included for defense. These features make bullet-resistant glass great for different needs.

Shaping and Cutting for Custom Applications

Shaping and cutting ballistic glass is an important step. Basically, this ensures the glass fits vehicles, buildings, or shields. Special tools are used to get exact shapes and sizes.

A computer-guided machine often does the cutting. It slices bullet-resistant glass layers with great precision. Diamond-tipped blades or water jets are used. These tools stop cracks or damage during cutting. Afterward, edges are smoothed to remove sharpness. This makes the glass safe and neat.

For curved designs, the glass is heated and shaped. This is common for car windshields or unique buildings. The glass is placed in a mold and warmed up. When soft, it takes the needed shape. Quick cooling keeps the shape locked in.

Custom designs need careful work. For example, armored cars need glass that fits perfectly. Banks and jewelry stores need glass cut to exact sizes. These custom solutions make bulletproof glass useful and reliable.

Tip: Custom shaping helps the glass match your safety needs.

Manufacturing Process of Transparent Armor Systems

The production of transparent armor systems involves advanced techniques. Manufacturers use aluminum oxynitride (ALON) to create these systems. ALON has excellent optical and mechanical properties. It provides protection while remaining clear and lightweight.

The process starts with the synthesis of ALON powder. Manufacturers create this powder from precursor materials. Then, they form the powder into ‘green bodies’ using various shaping methods. Specifically, they shape these bodies through techniques such as cold isostatic pressing, slip casting, or injection molding, ensuring precision and consistency throughout the process. Each method depends on the size and shape required.

After forming, the green bodies are heat-treated. This step densifies the material for optical clarity. Before polishing, each part undergoes inspection for defects. Manufacturers use advanced tools to check for internal flaws. This process ensures that manufacturers do not waste time on faulty parts. Afterward, they cut, grind, and polish the components to prepare them for use.

Curved surfaces are an important part of transparent armor. ALON can be formed into complex geometries, like domes and curved windows. These designs are used in military vehicles and aircraft. For example, cylindrically curved windows are common in ground vehicles. Similarly, conformal windows are used for aircraft sensor systems.

The ability to create curved ALON parts has expanded armor applications. These components are lightweight, durable, and versatile. They can protect against bullets while maintaining visibility. This makes them ideal for high-security uses.

Transparent armor production continues to evolve. New techniques improve efficiency and quality. ALON-based systems are now a leading choice for military and defense.

How Bulletproof Glass Works

Absorbing and Spreading Bullet Energy

Ballistic glass stops bullets by absorbing and spreading their energy. This keeps bullets from going through and lowers damage. Each layer has a job in this process. The outer glass layer takes the first hit. The polycarbonate layers then spread the leftover energy across the glass.

Research shows advanced materials absorb energy better. For example:

• An 8-layer CNTs/GFP-STF/Kevlar mix absorbs 20% more energy than just GFP-Kevlar.
• Energy absorption rises by 21.92% to 48.23% in tests.

This layered setup helps bulletproof glass handle strong impacts well.

Stopping Shattering with Polycarbonate Layers

Polycarbonate layers keep bullet-resistant glass from breaking apart. These layers are bendable and soak up shocks. They also stop sharp splinters from forming, making the glass safer.

Different types of damage happen based on material and impact. For example:

Failure Type	What Happens
Elastic Dishing	Thin plates bend when hit by round objects.
Petalling	Plates crack into petal shapes.
Deep Penetration	Thick plates get deeply pierced under strong hits.
Cone Cracking	Round objects cause cone-shaped cracks in thin plates.
Plugging	Thick plates form plug-like holes when hit by round objects.

Polycarbonate layers reduce these damages, keeping bullet-resistant glass strong.

How Layers Work Together to Stop Bullets

The layers in ballistic glass make it strong. Each layer does something important. The outer glass layer takes the first hit. Polycarbonate layers spread the energy. Laminates hold the layers together, adding strength.

This design works in real-life uses. For example:

Where It’s Used	How It Helps
Hospitals	Protects workers at desks from attacks.
Office Buildings	Secures windows, doors, and entrances from threats.
General Building Safety	Gives people time to escape and call for help during attacks.

These layers make sure ballistic glass works well in emergencies.

Real-Life Uses of Ballistic Glass

Ballistic glass helps keep people and places safe. Its toughness makes it perfect for many important uses. You’ll see it in areas where safety matters most.

1. Banks and Financial Institutions
   Banks use bullet resistant glass at counters and ATMs. It keeps workers and customers safe during robberies. It also protects money and machines from harm.
2. Government Buildings
   Government offices have ballistic glass in windows and doors. This glass guards officials from attacks. It also keeps visitors and staff secure.
3. Armored Vehicles
   Armored cars and military vehicles use bullet resistant glass. It shields passengers from bullets and blasts. Police vehicles also use it in dangerous situations.
4. Retail Stores and Jewelry Shops
   Stores with expensive items use ballistic glass for safety. It stops theft and protects workers. The glass also discourages criminals from trying to break in.
5. Schools and Hospitals
   Schools and hospitals add bullet resistant glass for extra security. It keeps students, teachers, and medical staff safe in emergencies. Parents and patients feel more at ease too.
6. Airports and Transportation Hubs
   Airports use ballistic glass at ticket counters and control towers. It protects workers and travelers. Train and bus stations also benefit from this safety feature.

Tip: Pick the right glass for your needs. Think about how much protection your space requires.

These examples show how ballistic glass improves safety in key places. Its strength makes it trusted worldwide.

Types of Bulletproof Glass and Their Applications

Acrylic Bulletproof Glass: Lightweight and Affordable

Acrylic bulletproof glass is light and budget-friendly. It is 30-40% thinner than regular bulletproof glass. This makes it simple to move and install. Even though it’s thin, it protects well against Level III threats like 7.62mm bullets.

Property	Acrylic Bulletproof Glass	Traditional Bulletproof Glass
Weight Reduction	30-40% lower thickness	Higher thickness
Cost-Effectiveness	More affordable	Generally more expensive
Ballistic Protection Level	Level III (7.62mm rounds)	Varies by type

Acrylic is very clear, making it great for banks, stores, and displays. Its low cost and good performance make it a favorite choice.

Tip: Pick acrylic glass for light and affordable safety.

Laminated Polycarbonate: Versatile and Durable

Laminated polycarbonate is strong and flexible. It has the best impact strength among clear plastics. It also resists chemicals and UV rays, making it good for outdoor use.

• Polycarbonate lets in more light than acrylic.
• It is often used for safety windows and shields.
• Its light weight lowers shipping and setup costs.

Laminated polycarbonate works well for high-security needs. It’s used in armored cars, safety glass, and barriers. Its toughness reduces repair and replacement costs.

Note: Laminated polycarbonate is great for long-lasting, flexible projects.

Glass-Clad Polycarbonate: Maximum Ballistic Protection

Glass-clad polycarbonate offers the best bulletproof safety. It mixes glass and polycarbonate layers for extra strength. It can stop bullets from handguns and rifles.

Protection Level	Caliber Tested	Bullets Stopped
UL 752 Level 1	9mm handgun	3
UL 752 Level 2	.357 handgun	3
UL 752 Level 3	.44 magnum	3
UL 752 Level 4	.30 caliber rifle	1
Level 8	Various	1

This type of glass is used in military vehicles, government offices, and secure buildings. It gives top safety in dangerous situations.

Tip: Choose glass-clad polycarbonate for the best protection.

Customizable Bullet Resistant Glass for Functional Needs

Manufacturers create custom bullet-resistant glass to fit different safety needs. Indeed, you can pick the design, shape, and thickness that works best. Therefore, this makes it useful for homes, stores, or secure buildings.

Basically, manufacturers change the layers and materials to meet your needs. In fact, thicker glass can stop stronger bullets. While, curved glass is great for cars. Additionally, manufacturers can add special coatings like anti-glare or scratch-resistant finishes. Thus, these features improve how the glass looks and works.

Custom glass proves its strength in real-life cases. Particularly, in Rockford, IL, thieves tried to smash into a jewelry store with a car. However, the store used SBG UL Level 3 bullet resistant glass. Therefore, the glass stayed strong and protected the items inside. Thus, this shows how custom glass handles tough situations.

Schools, hospitals, and stores also use custom glass. It keeps people safe while looking professional. Schools can use clear glass that blocks bullets but lets in light. Hospitals can add it to reception areas for safety and visibility.

Custom bullet resistant glass mixes safety with flexibility. It fits your space and gives strong protection. Whether for a shop, car, or office, you can find the right glass.

Tip: Work with experts to create glass that fits your needs.

Closing Remarks

Bulletproof glass made of advanced materials and built with a modern process offers top safety. Its layers soak up hits and stop breaking, making it essential in risky places. New technology has made it stronger and clearer, improving how it works and looks. Better materials and methods create lighter, tougher, and clearer bulletproof glass. These upgrades boost its ability to stop bullets and make it look better, fitting more uses.

References

Konrád, P., Hála, P., Schmidt, J., Zemanová, A., & Sovják, R. (2022). Laminated Glass Plates Subjected to High-Velocity Projectile Impact and Their Residual Post-Impact Performance. Materials, 15(23), 8342. https://doi.org/10.3390/ma15238342

Grujicic, M., Bell, W., & Pandurangan, B. (2011). Design and material selection guidelines and strategies for transparent armor systems. Materials & Design (1980-2015), 34, 808–819. https://doi.org/10.1016/j.matdes.2011.07.007

Lee M. Goldman, Sreeram Balasubramanian, Mark Smith, Nagendra Nag, Robyn Foti, Santosh Jha, and Suri Sastri “Conformal ALON® windows”, Proc. SPIE 9453, Window and Dome Technologies and Materials XIV, 945306 (22 May 2015); https://doi.org/10.1117/12.2177236
