Laser-Based Acoustic Surface Analysis: The Future of Non-Contact Material Testing

Estimated reading time: 7 minutes

As materials evolve to meet the demands of sustainability and advanced performance, so too must the techniques used to evaluate them, especially through laser-based acoustic surface analysis. In the field of acoustics, where even minor surface irregularities can drastically affect performance, accurate testing is critical. Traditional methods, while effective, often involve physical contact that can distort sensitive surfaces or be impractical for soft, porous materials. This is where laser-based non-contact techniques step in. Using focused light and optical precision, these methods allow researchers to analyze surface behavior and acoustic response without ever touching the material. They represent the next generation of smart, efficient, and high-resolution diagnostics – especially in the domain of sustainable composites and green acoustic solutions, powered by laser-based acoustic surface analysis.

Why Non-Contact Techniques Matter in Modern Acoustics?

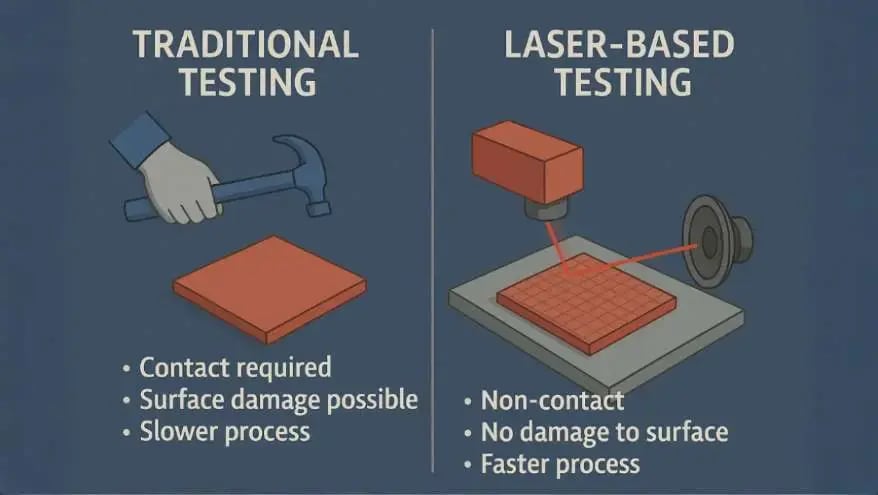

1. Challenges of Traditional Methods

Conventional surface characterization relies heavily on tactile probes, contact sensors, or destructive sectioning. While these methods provide insights, they fall short when working with delicate materials like fiber-reinforced composites or organic waste-based panels. Physical contact can deform soft materials, contaminate surfaces, or deliver inconsistent measurements. These limitations create a strong case for adopting contactless surface testing and non-invasive acoustic evaluation technologies.

2. Role of Precision in Acoustic Applications

In acoustic engineering, surface roughness, density, and structural uniformity significantly influence absorption coefficients, reflection loss, and frequency-dependent behavior. Achieving precision without physical interference ensures that the material performs as designed—especially when evaluated using laser-based acoustic surface analysis in real-world applications like building insulation, automotive acoustics, and noise-canceling panels.

Also Read: Acoustics Science: A guide for Young Learners

Introduction to Laser-Based Surface Analysis Techniques

Modern methods such as laser-based acoustic surface analysis offer engineers powerful tools to evaluate material responses with unmatched precision .

1. Laser Doppler Vibrometry (LDV)

Essentially, LDV measures surface vibrations using the Doppler shift of a reflected laser beam. This hence allows engineers to “listen” to how materials react to sound without embedding sensors or damaging the surface. Consequently, applications range from assessing panel resonance to evaluating mechanical fatigue in noise-prone environments. Furthermore, LDV is increasingly used in optical acoustic diagnostics to identify resonance zones in eco-composites.

2. Laser Speckle Interferometry

When a coherent laser beam hits a rough surface, it forms a grainy speckle pattern. As a result, any movement or deformation alters this pattern, which can be precisely analyzed to detect subsurface cracks, voids, or shifts in surface stiffness. It’s like taking a fingerprint of the material’s acoustic behavior in real time, making it a key part of laser-based acoustic surface analysis workflows and smart acoustic sensing.

3. Scanning Laser Thermography

While primarily thermal, this method becomes acoustically relevant when materials heat up due to vibrational energy. Laser thermography maps these heat zones, offering indirect clues about either vibration damping, resonance points, or defect locations in acoustic materials.

Also Read: Acoustics and Sound: The Science Behind Waves

Case Study – Acoustic Materials Analysis Using Laser Speckle Method

Experimental Setup

A recent investigation used natural fiber-based composite panels derived from orange peel and corn husk. Specifically, a continuous-wave laser was directed onto the surface as part of a laser-based acoustic surface analysis experiment using natural fiber composites. Subsequently, the speckle pattern was recorded using a high-resolution CMOS sensor.

Results

These findings indeed underscore how laser-enabled material analysis can rival traditional tests. Specifically, the speckle displacement patterns revealed micro-zones of high-frequency absorption and surface non-uniformity, correlating with regions of fiber clustering. Furthermore, reflection loss estimates derived from the speckle pattern matched with impedance tube results within a 5% margin of error – highlighting the method’s accuracy and value. This henceforth validates the capability of laser-based acoustic surface analysis in assessing eco-acoustic panel performance.

Tools & Equipment for Laser-Based Acoustic Surface Analysis

Essential Equipment

Implementing laser-based acoustic surface analysis requires integration of stable light sources and vibration detection systems.

• Laser sources: Diode lasers (650 nm or 785 nm) are commonly used due to their stability and safety profile.
• Wave analyzer: Tools like the Holmarc Wave Analyzer 4C help integrate vibration response with laser feedback.
• Vibration-isolated table: Eliminates ambient noise and tremors to ensure clean data capture.

Software Used

• Origin Pro: Data plotting and frequency domain visualization
• MATLAB: MATLAB: Signal processing and pattern recognition for vibration mapping technology.
• LabVIEW: Instrument control and real-time interfacing

Benefits & Future Scope of Non-Contact Laser Techniques

Benefits of Laser-based Acoustic Surface Analysis

• Enables contactless surface testing ideal for materials with irregular geometries.
• High accuracy without disrupting surface properties
• Real-time visualization of acoustic behavior
• Ideal for fragile, irregular, or eco-materials, where contact is not an option

Future Prospects of Laser-based Acoustic Surface Analysis

All things considered, these techniques are rapidly moving from lab setups to industrial applications. As a result, as AI becomes integrated with laser diagnostics, predictive defect analysis and real-time quality control through laser-based acoustic surface analysis could become standard in manufacturing lines for acoustic panels, automotive interiors, or even stealth materials.

Imagine buildings where smart panels self-assess their soundproofing capacity – or vehicles that detect and adjust surface response in real time to reduce cabin noise. Non-contact laser acoustics is a key enabler in this future, and laser-based acoustic surface analysis will be at the forefront of these innovations.

Laser-based non-contact techniques are redefining how we measure and understand material surfaces in acoustics. From delicate green composites to high-performance metamaterials, these optical tools bring unparalleled precision, enabling smarter designs and better noise control strategies.

Laser-based Acoustic Surface Analysis: Conclusion

In essence, laser-based acoustic surface analysis empowers researchers to explore new design frontiers with precision surface acoustics—redefining how we build quieter, smarter, and greener spaces.

Additionally, to stay updated with the latest developments in STEM research, visit ENTECH Online. Basically, this is our digital magazine for science, technology, engineering, and mathematics. Furthermore, at ENTECH Online, you’ll find a wealth of information.

Laser-based Acoustic Surface Analysis: FAQ

1: What are non-contact techniques in surface analysis?

Answer: These methods use either optical or laser-based tools to analyze material surfaces without physically touching them.

2. How does laser speckle help in material testing?

Answer: Laser speckle captures overall interference patterns caused by surface features or vibrations. These can be analyzed later for structural integrity.

3. Why is non-contact testing important in acoustics?

Answer: It allows precise evaluation of surface behavior without altering the material, essential for soft or composite materials, especially when relying on non-invasive acoustic evaluation.

4. Can laser techniques replace traditional acoustic testing?

Answer: They enhance traditional methods, offering finer resolution and enabling testing of otherwise inaccessible surfaces.

5. Are these techniques scalable for industrial use?

Answer: Yes, as shown above many laser-based tools are being adapted for real-time quality control in production environments.

References

1. Mahapatra, M., Singh, P. P., & Nath, G. (2023). Laser speckle-based estimation of surface condition for designing quieter material. Laser Physics, 34(1), 016003. https://doi.org/10.1088/1555-6611/ad0ec0
2. Verma, N. K., & Kumar, S. (2006). Laser based optical sensor for vibration measurements. NDT & E International, 39(2), 106–108. https://doi.org/10.1016/j.ndteint.2005.07.014
