“Sherlock STEAM”: Bringing Mathematics Back to Life with Control Detective Work

In Tinkercad Circuits and the Missing “M”, we argued that the heart of STEAM beats strongest when students practice mathematical thinking, not just build circuits. Small decision rules (thresholds, comparisons, feedback) already run our everyday world; the classroom should make those rules visible, testable, and explainable. Thus, this piece extends that call with a classroom method we call Sherlock STEAM—treating each control problem as a detective case.

Indeed, the method blends story, control rules, and evidence-based reasoning to turn even middle-school learners into “junior engineers.” Eventually, our first season begins with on–off (bang-bang) control; upcoming installments will climb the ladder to P, PI, PID, and beyond.

Why “Sherlock,” and why now?

Today’s learners live inside control systems. Indeed, from thermostats and refrigerators to automatic doors and robot vacuums. Under the hood, many of these systems are built on simple rules: “if light < threshold → lamp ON,” “if temperature ≥ threshold → heater OFF,” and so on. Hence, every day of life is powered by inequalities and decision tables.

Sherlock STEAM invites learners to approach each scenario like a case: scene → evidence → hypothesis → experiment → claim–evidence–reasoning (CER). Simultaneously, students don’t just make a circuit work; they learn why it works. And why a tiny change (one degree, five lux, two centimeters) can dramatically affect stability, energy use, and device lifetime.

Our pedagogy stands on three pillars:

• Constructionism: Learners construct meaning when they build a shareable artifact—circuit, graph, or report (Papert, 1980).
• Story as cognitive glue: Well-designed narratives heighten attention, memory, and transfer (applying knowledge to new situations).
• Feedback-rich practice: Visible learning thrives on frequent, actionable feedback (Hattie, 2009). Additionally, in our loop—measure → plot → decide—feedback is immediate.

What is “Control Detective Work”?

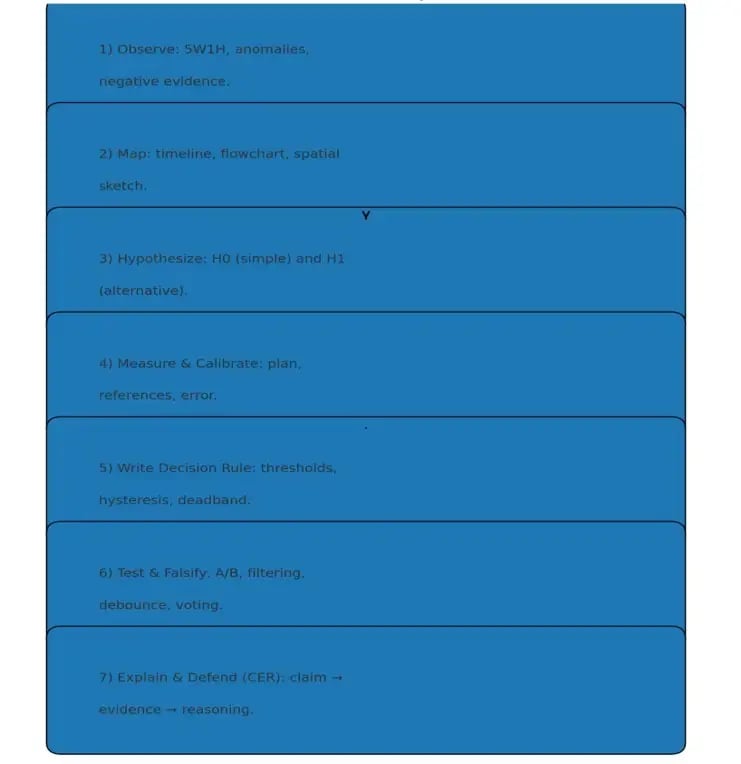

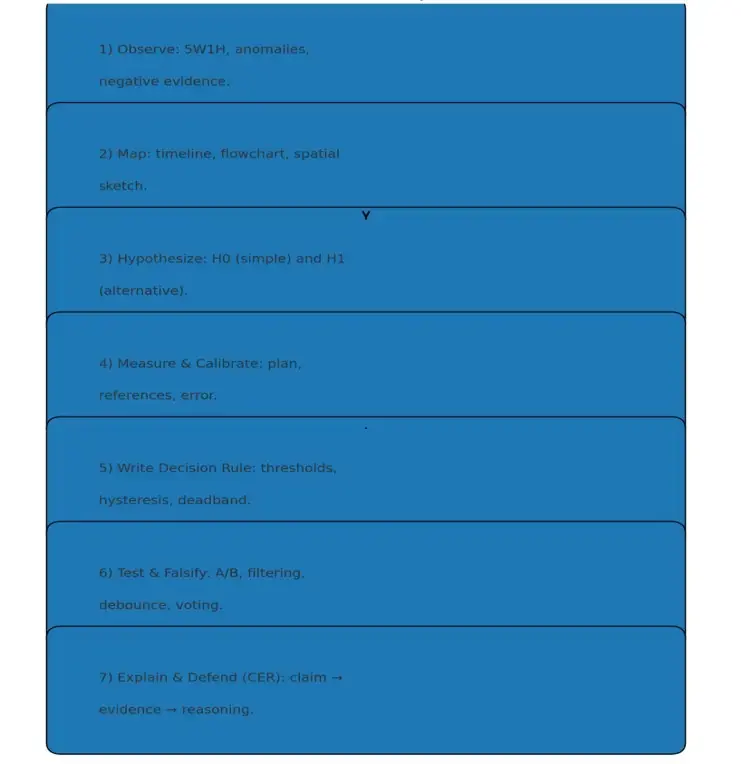

Sherlock STEAM packages each control topic (on–off, debounce, hysteresis, filtering, P/PI/PID…) as a case file. Every file uses the same 7-step framework:

1. Observe: 5W1H, anomalies, and negative evidence (what’s missing but should be there).
2. Map: Timeline, flowchart, spatial sketch.
3. Hypothesize: At least two hypotheses—simple (H0) and alternative (H1).
4. Measure & Calibrate: A data plan, known references, and awareness of error.
5. Write the Decision Rule: Thresholds and hysteresis band (two thresholds); add a deadband if needed.
6. Test & Falsify: A/B trials; add filtering (moving average/median), debounce, or voting.
7. Explain & Defend (CER): Claim → evidence → reasoning, with graphs and a tidy data table.

Therefore, the result is a research reflex: evidence first, decision second—in language a middle-schooler can own.

Season 1: Turning On–Off Control into “Cases”

On–off (bang-bang) control is a two-state decision maker—simple and robust, which is why it appears in thermostats and night lights. With a single threshold, however, systems can chatter at the boundary. Hence, the remedy is hysteresis—two different switching thresholds. Moreover, in electronics, a Schmitt trigger provides hysteresis and noise immunity.

Below are three one-page case files that we run as hands-on worksheets.

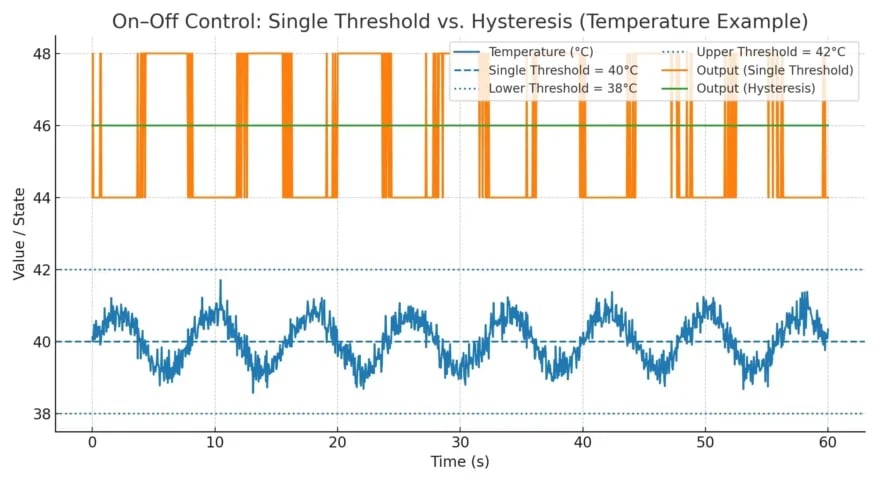

Case 1 — Thermostat: “The City That Clicked Too Much”

• Scene: Our mini greenhouse box hovers near 40 °C. Therefore, the relay goes click-click—classic chattering.
• Hypothesis: A single 40 °C threshold sits right where noise fluctuates.
• Sherlock Rule: Don’t turn ON until below 38 °C; don’t turn OFF until above 42 °C (hysteresis = 4 °C).
• Experiment: A (single threshold) vs. B (dual thresholds + 5-sample moving average).
• Evidence: In B, the ON/OFF count drops sharply; the “sawtooth” edges in the temperature plot soften. Therefore, stability improves.

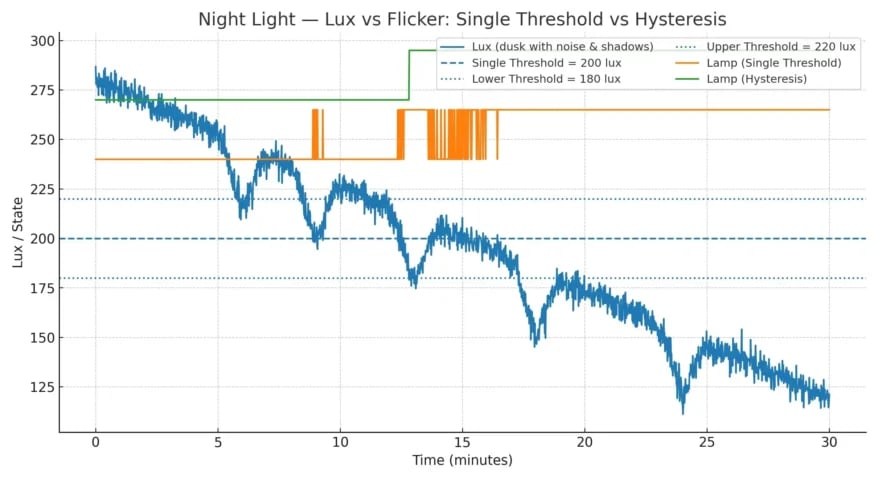

2nd Case — Night Light: “Good-bye Flicker”

• Scene: At dusk, the LDR reading wobbles around 200 lux. The lamp flickers.
• Hypothesis: With one threshold, tiny oscillations cause rapid toggling.
• Sherlock Rule: 180 lux to turn ON, 220 lux to turn OFF; add ±5 lux deadband and a median filter.
• Experiment: Count flickers and false alarms; compare A/B.
• Evidence: Further, flicker count approaches zero; energy points go down.

Case 3 — Robot Taxi (HC-SR04): “Stopping the Phantom Brakes”

• Scene: A fast passerby creates a one-off “near” reading; the robot slams the brakes.
• Hypothesis: One measurement → one decision is too sensitive; side echoes create false proximity.
• Sherlock Rule: Use a 7-sample median and 2-out-of-3 voting (only stop if two of the last three decisions say “stop”).
• Experiment: Drive five laps; additionally, count false stops and measure decision delay.
• Evidence: False stops drop to zero; a small delay appears, but safety improves.

Sherlock STEAM’s Toolkit: Cards, Notebook, Mini-Games

Sherlock Card Deck: A wall-mounted deck (observation, structuring, reasoning, math, scientific method, systems & control…) acts as a role model guide. Eventually, for each case, student teams pick a few cards to use in real time: “Anomaly Hunt,” “Fishbone Diagram,” “Moving Average,” “A/B Test,” “Deadband,” “Sensitivity vs. Robustness,” etc. Furthermore, we also provide a comic-style version with speech bubbles, “Sherlock says: Evidence first!”—to boost engagement.

Sherlock Notebook: A single-page template per session: Scene → Evidence → Hypothesis → Rule → Experiment → Data Table → Graph → CER. Indeed, one page forces focus: short but deep.

Human-PID mini-game (middle-school version): Students “walk” toward a target line: P: step size proportional to current error; I: extra steps proportional to accumulated error; D: braking proportional to the change in error. Thus, they compare overshoot and settling behavior—then transfer the intuition to code later.

Energy Points: ON/OFF = 1 point; false alarm = 3 points. Teams compete to achieve the same goal with the fewest points. Hence, cultivating optimization instincts without heavy math.

How to Run Sherlock STEAM in Class (Teacher Guide)

• Timing: For a 40-minute lesson: 10′ (Scene + Hypothesis) → 15′ (A/B Experiment) → 10′ (Graph + CER) → 5′ (Real-life Transfer).
• Safety: Start with the LED/buzzer simulation. Also, if using loads: relay modules, isolated power, and disciplined wiring.
• Metrics: Track ON/OFF count, false alarms, and energy points. Similarly, small class competitions keep focus on stability and efficiency, not just “making it blink.”
• Evidence culture: No explanation without a graph. Axes with units are mandatory (dimensional analysis). Moreover, students repeat measurements and calibrate (ice bath at 0 °C, reference light source).
• Apprenticeship rhythm: Model → Co-build → Apprentice tries → Apprentice teaches a peer. Also, light Socratic prompts—“Why do you think so? What’s your evidence?”—deepen reasoning.
• From simple to layered: Students see the staircase: On–Off → P → PI → PID. Hence, we bridge analog and digital by comparing Schmitt triggers (hardware hysteresis) to software hysteresis and voting.

What’s Next? (Roadmap for the Series)

• Debounce & Noise: Mechanical bounce and software/RC solutions.
• Deeper Hysteresis: Designing Schmitt triggers; deadband and sensitivity trade-offs.
• Filters, Family Edition: Moving average, exponential smoothing, median—pros/cons and the cost of delay.
• Bridge to P, PI, PID: The human-PID game, overshoot and damping intuition; safe, low-risk Tinkercad simulations.
• Real Systems: Heater box, night light, parking assistant; energy–lifetime estimates and reverse engineering of appliances (fridge, AC).
• The AI Bridge: From signal to features to edge AI triggers; “smart thresholds” and basic anomaly detection.

Career Bridges: Today’s Case, Tomorrow’s Job

• Control & Automation: The staircase from on–off to PID spans process control to robot arms.
• Mechatronics & Embedded Systems: Sensors, actuators, energy, and safety—real-world software.
• Data & AI: Measurement, cleaning, filtering → features → classification; hybrid “control + AI” skill sets.
• Design & Product: User story → requirements → prototype → test → iteration; an evidence-driven product culture.

FAQ: Why does this Method Work?

• Firstly, the story engages attention; evidence cements learning.
• Learning by making and artifact-centered work forces learners to construct meaning (Papert, 1980).
• Visible learning thrives on frequent feedback and clear progress (Hattie, 2009).
• The simple-to-layered staircase (On–Off → P → PI → PID) manages cognitive load; each step builds on evidence from the previous.
• Lastly, real-life transfer is required: the case ends in class but restarts at home.

Final Word: Put Mathematics in the Driver’s Seat

Sherlock STEAM is less a “pack” and more a way of seeing. A student stands at a scene with a case file, evidence cards, a graph, and a team. Sometimes it’s a single degree, sometimes five lux or two centimeters. Certainly, small differences that profoundly change stability and energy. The moment students witness that, mathematics moves from the margins to the driver’s seat.

Therefore, this article is the hands-on sequel to the “Missing M” call. In the coming chapters, using the same detective frame, we’ll unpack debounce, hysteresis design, the filter family, and P/PI/PID—each with real incidents, evidence tables, and simple experiments. Hence, our aim is bold yet clear: Put a case file in every learner’s hand and turn them into detectives of their own learning.

References

• Cadence. (2021, January 8). Schmitt Trigger Hysteresis Provides Noise-free Switching and Output. https://resources.pcb.cadence.com/blog/2021-schmitt-trigger-hysteresis-provides-noise-free-switching-and-output
• Arnold, I. (2011). John Hattie: Visible learning: A synthesis of over 800 meta-analyses relating to achievement. International Review of Education, 57(1–2), 219–221. https://doi.org/10.1007/s11159-011-9198-8
• Maharaj-Sharma, R. (2024). Using storytelling to teach a topic in physics. Nordic Studies in Science Education, 20(2), 137–156. https://doi.org/10.1080/20004508.2022.2092977
• Papert, S. (1980). Mindstorms: children, computers, and powerful ideas [Book]. In Basic Books, Inc., Publishers. Basic Books, Inc. https://worrydream.com/refs/Papert_1980_-_Mindstorms,_1st_ed.pdf
• Texas Instruments. (2025). Understanding Schmitt Triggers (Rev. B). https://www.ti.com/lit/pdf/scea046
