Understanding the Different Types of Logic Gates: Your Complete Guide

Estimated reading time: 7 minutes

Logic gates are the fundamental building blocks of digital electronics. Specifically, they operate in circuits to perform logical operations on binary inputs (0s and 1s) and generate a single output based on predefined rules. As a result, logic gates play a crucial role in designing computers, calculators, and various digital systems. Moreover, there are several basic types of logic gates, each with its unique function, contributing to the efficiency of digital technology.

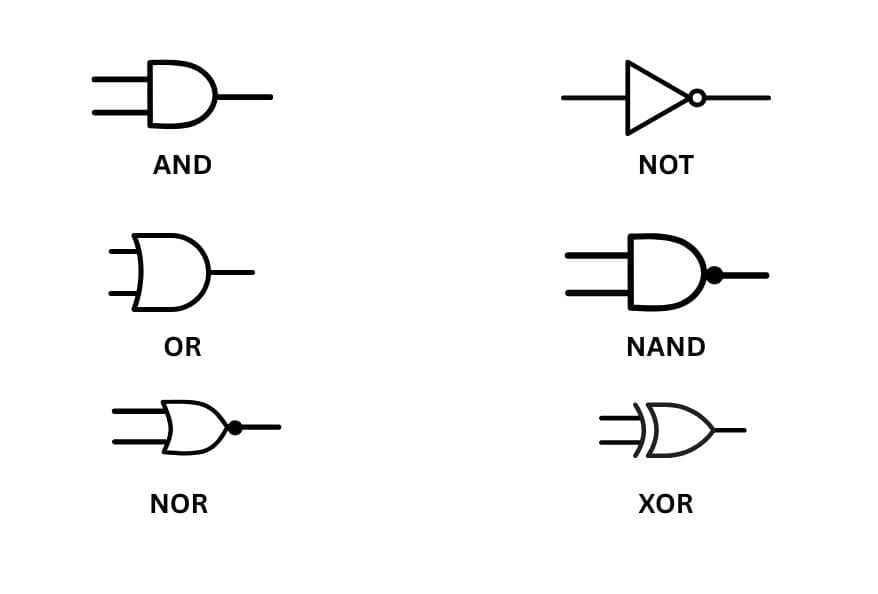

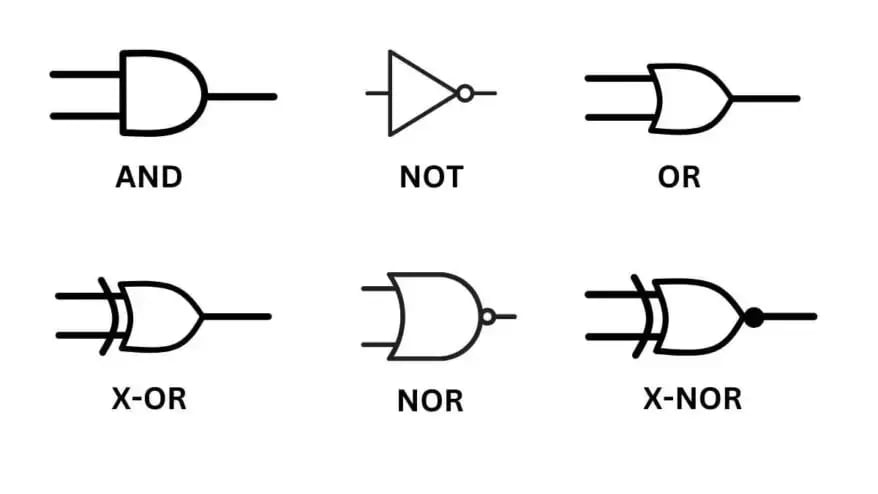

The most common types of Logic Gates include AND, OR, NOT, NAND, NOR, XOR, and XNOR gates. Each of these gates has a specific truth table that defines its operation. Truth tables are crucial because they provide a clear and concise way to represent the function of each gate.

Types of Logic Gates: Basics

These gates form the foundation of digital logic. Each gate follows a specific rule based on Boolean algebra.

AND Gate

• The AND gate outputs 1 (true) only when all inputs are 1. Otherwise, the output is 0.
• This behavior allows the AND gate to be useful in situations where multiple conditions must be met simultaneously. For example, in a security system, an alarm sounds only when multiple sensors trigger at the same time.
• Boolean Expression: Y = A * B
• Truth Table:

A	B	Y (A AND B)
0	0	0
0	1	0
1	0	0
1	1	1

OR Gate

• The OR gate outputs 1 if at least one input is 1. The output is 0 only when all inputs are 0.
• This characteristic makes the OR gate useful in scenarios where any one of several conditions being true is sufficient to trigger an action. For example, in a lighting system, the lights might turn on if any one of several switches is flipped.
• Boolean Expression: Y = A + B
• Truth Table:

A	B	Y (A OR B)
0	0	0
0	1	1
1	0	1
1	1	1

NOT Gate (Inverter)

• The NOT gate, also known as an inverter, outputs the opposite of the input.
• Boolean Expression: Y = A’
• Truth Table:

A	Y (NOT A)
0	1
1	0

Also: Introduction to Electrical Engineering.

Types of Logic Gates: Universal Logic Gates

Universal gates can be used to create any other type of logic gate. They are called “universal” because of their versatility in constructing complex circuits. The two most common universal gates are the NAND and NOR gates.

Engineers can combine these gates in various ways to replicate the functions of any other basic logic gate, making them highly valuable in digital circuit design.

NAND Gate

• The NAND gate is an AND gate followed by a NOT gate. It outputs 0 only when all inputs are 1; otherwise, it outputs 1. This property makes the NAND gate particularly useful in creating other logic gates and complex circuits.
• Boolean Expression: Y = (A * B)’
• Truth Table:

A	B	Y (A NAND B)
0	0	1
0	1	1
1	0	1
1	1	0

NOR Gate

• The NOR gate is an OR gate followed by a NOT gate. It outputs 1 only when all inputs are 0.
• Boolean Expression: Y = (A + B)’
• Truth Table:

A	B	Y (A NOR B)
0	0	1
0	1	0
1	0	0
1	1	0

Special Logic Gates

These gates perform exclusive operations and are widely used in arithmetic circuits. Among these, the most common special logic gates are the XOR and XNOR gates. Additionally, they play a vital role in digital computations and error detection. Furthermore, these gates are essential in digital systems for tasks like error detection and correction, ensuring data accuracy and reliability.

XOR (Exclusive OR) Gate

• The XOR gate outputs 1 if the inputs are different and 0 if they are the same.
• Boolean Expression: Y = A ⊕ B
• Truth Table:

A	B	Y (A XOR B)
0	0	0
0	1	1
1	0	1
1	1	0

XNOR (Exclusive NOR) Gate

• The XNOR gate is the inverse of the XOR gate. It outputs 1 when inputs are the same and 0 when they are different.
• Boolean Expression: Y = (A ⊕ B)’
• Truth Table:

A	B	Y (A XNOR B)
0	0	1
0	1	0
1	0	0
1	1	1

Applications of Logic Gates

Different types of Logic gates are widely used in various fields, including:

1. Computers and Processors: Logic gates are used in ALUs, registers, and memory storage. Specifically, they are fundamental in performing arithmetic and logical operations, thereby enabling the execution of complex instructions and processes within a computer system.
2. Digital Circuits: Found in flip-flops, multiplexers, and encoders. They play a crucial role in controlling data flow and ensuring accurate signal processing within digital systems. Flip-flops are used to store binary data, while multiplexers select one of many input signals and forward it to a single output line.
3. Communication Systems: Used in data transmission and error detection.They identify and correct errors that may occur during transmission, ensuring accurate data transmission over networks. Error detection techniques such as parity checks and cyclic redundancy checks (CRC) often utilize logic gates to verify the integrity of data.
4. Automated Systems: For example, traffic signals, robotics, and industrial automation use logic gates. In these applications, they help in decision-making processes by controlling the sequence of operations and ensuring that systems respond correctly to various inputs. Additionally, logic gates in automated systems enable precise control and coordination, ensuring that machinery operates efficiently and safely.
5. Arithmetic Operations: Digital circuits employ XOR and AND gates to perform addition and multiplication The XOR gate is particularly useful in binary addition, where it helps determine the sum bit without carrying over. The AND gate, on the other hand, is used to determine the carry bit in binary addition. In multiplication, logic gates implement binary multipliers, which perform the multiplication of binary numbers using a series of addition and shift operations. Moreover, these operations are essential in the design of arithmetic logic units (ALUs) within processors, as they enable efficient computation and processing of numerical data.

Frequently Asked Questions (FAQ)

1. What is the role of logic gates in ALUs, registers, and memory storage?
Logic gates play a crucial role in ALUs (Arithmetic Logic Units), registers, and memory storage by performing arithmetic and logical operations. Furthermore, they help process data and execute complex instructions within a computer system, ensuring efficient performance and functionality.

2. How do logic gates contribute to the execution of instructions in a computer?
Logic gates enable computers to perform essential tasks such as addition, subtraction, comparisons, and data storage. By forming circuits, they process binary inputs and produce outputs that help execute instructions efficiently.

3. Why are logic gates considered fundamental in computer architecture?
Logic gates serve as the building blocks of digital circuits, thereby enabling the functioning of processors, memory units, and control units. Additionally, their ability to process logical operations ensures smooth computational performance.

4. What types of logic gates are commonly used in memory storage?
Common logic gates used in memory storage include AND, OR, NAND, and NOR gates. These gates help in data storage, retrieval, and manipulation within registers and memory units.

5. How do ALUs use logic gates for arithmetic operations?
ALUs use logic gates such as AND, OR, XOR, and ADDER circuits to perform arithmetic operations like addition, subtraction, multiplication, and division. These operations are essential for executing mathematical computations in processors.

Reference

1. Rathore, A. S., & Kumar, P. (2018). A review of logic gates and its applications. Journal of Emerging Technologies and Innovative Research (JETIR), 5(6), 147–151. Retrieved from https://www.jetir.org/view?paper=JETIRCW06026
2. Li, X.-L., Liu, Y., Zhang, H., & Wang, X. (2021). Advances in applications of molecular logic gates. ACS Omega, 6(32), 21122–21136. https://doi.org/10.1021/acsomega.1c02912
3. Tyagi, N., Ghosh, P., & Mukherji, S. (2015). Recent advances and opportunities in synthetic logic gates. ACS Synthetic Biology, 4(10), 1081–1091. https://doi.org/10.1021/acssynbio.5b00074
4. Papandroulidakis, G., Adamatzky, A., Sirakoulis, G. C., & Chua, L. O. (2018). Practical implementation of memristor-based threshold logic gates. arXiv preprint arXiv:1810.03333. Retrieved from https://arxiv.org/abs/1810.03333
