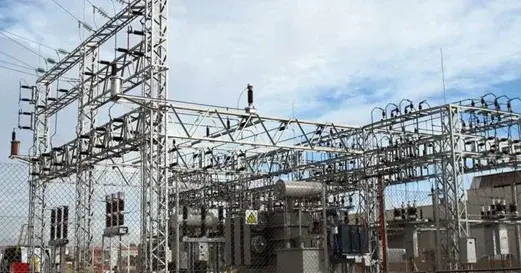

The world’s growing demand for electricity has, therefore, necessitated significant advancements in power distribution and transmission systems. Consequently, transformers play a pivotal role in this process by stepping up or stepping down voltage levels, thereby ensuring efficient energy transfer. Importantly, the core component of a transformer is the laminated core, which is crucial for magnetically coupling the primary and secondary windings. Traditionally, the core build-up process has been both labor-intensive and time-consuming. However, with the integration of robotic automation in this process, the landscape of transformer manufacturing is changing significantly by not only enhancing efficiency but also improving precision and overall quality.
The Core Build-up Process
Before delving into the benefits of robotic automation, it’s essential to understand the core build-up process. Transformer cores use thin layers of steel called laminations. Manufacturers create these layers from high-quality electrical steel sheets. Engineers carefully stack and align the laminations to reduce magnetic losses and unwanted electric currents, known as eddy currents. The laminations have a protective layer on them. They call this layer insulating varnish. Insulating varnish is a special type of coating. It helps stop electricity from leaking out. After stacking, the core goes through pressing and heating steps to make sure it stays strong and stable.
Challenges in Traditional Manufacturing of Robotic Automation
Labour-Intensive: The manual assembly of transformer core laminations is labour- intensive, requiring skilled workers to align and stack laminations accurately.
Error-Prone: Human errors can lead to misalignment of laminations or the inclusion of defective sheets, compromising the transformer’s efficiency.
Slow Production: Traditional methods are time- consuming, limiting the rate of transformer production to meet growing energy demands.
Robotic Automation in Core Build-up
Robotic automation is a game-changer in transformer manufacturing. Here’s how it transforms the core build-up process:
Precision and Consistency: Robots are programmed to handle lamination sheets with extreme precision, ensuring accurate alignment and stacking. This results in consistently high- quality transformer cores.
Speed and Efficiency: Robots work tirelessly 24/7, significantly increasing production rates. It is especially crucial in times of high demand for transformers.
Quality Assurance: Robotic systems are equipped with sensors and cameras that can detect defects in lamination sheets. They can automatically reject flawed sheets, reducing the chances of faulty transformers entering the market.
Worker Safety: By automating physically demanding and repetitive tasks, the risk of worker injuries is significantly reduced.
Cost Savings: Although the initial investment in robotic automation is substantial, the long-term cost savings in labour, reduced waste, and improved efficiency make it a financially sound decision.
Challenges and Considerations
While robotic automation offers numerous advantages, there are challenges and considerations to address:
Initial Investment: Implementing robotic automation requires a significant upfront investment in equipment, software, and training.
Skilled Workforce: Skilled technicians are needed to program, maintain, and troubleshoot robotic systems.
Adaptability: Robotic systems must be adaptable to handle various transformer core sizes and configurations.
Integration: Seamless integration of robots into existing manufacturing processes is essential for a smooth transition.
Key Robotic Automation Components for Transformer Core-Buildup Automation

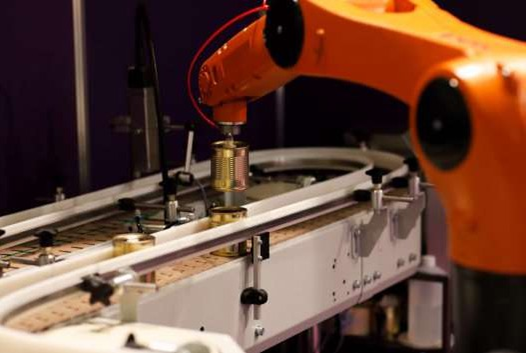

Robotic Arm:
At the heart of the automation process is the robotic arm. These arms come in various configurations, such as articulated, cartesian, or SCARA, depending on the specific application. In transformer core-buildup, people often use articulated arms. These arms are popular because they can move in many directions. Their flexibility allows them to reach different places easily. The robotic arm is responsible for picking up and accurately placing each laminated sheet in the desired position within the core assembly. Precise movements are critical to ensuring the efficiency and quality of the transformer core.
End-Effector:
The end-effector, also known as the robotic gripper or tool, is the component that interacts directly with the laminated sheets. Depending on how big and heavy the sheets are, different grippers are used. Vacuum grippers are the most common. These use suction to lift and move sheets. They are gentle and don’t harm the material. Magnetic grippers are another option. These work with ferrous laminations, which are sheets that contain iron.

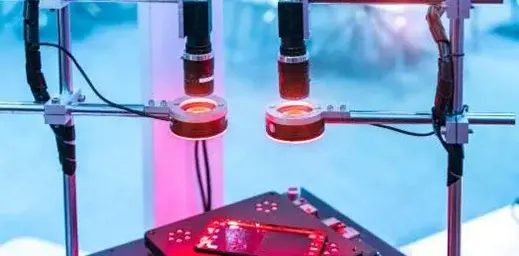

Vision System in robotic automation:
Robotic Automation systems often use vision systems, which, in turn, play a critical role in ensuring accuracy and quality. Specifically, these vision systems not only help place the laminated sheets in the correct position but also assist in detecting any defects in the sheets. Furthermore, these systems utilize cameras and image processing algorithms to provide real-time feedback, thereby enhancing the precision of the process. For instance, high-resolution cameras capture detailed images of the sheets, which the software subsequently examines to identify any alignment issues or flaws. Consequently, this process ensures that only high-quality sheets are utilized in the core assembly, ultimately contributing to improved manufacturing outcomes.
Control Software in robotic automation:
The brain behind the operation, namely the control software, is primarily responsible for programming and coordinating the movements of the robotic arm and the gripper. Additionally, it interfaces seamlessly with the vision system to make real-time decisions based on the visual input, ensuring precision at every step.
Moreover, the software can be easily adapted to work with various core setups, further enhancing its versatility. In addition to this, it is capable of handling different sheet sizes, thereby making it an exceptionally flexible tool for automating the process of building transformer cores. Consequently, this adaptability ensures that the system can meet diverse manufacturing needs efficiently and effectively.
Sensors:
Sensors play a crucial role in ensuring safety and precision. Proximity sensors can detect the presence of objects in the robot’s path, preventing collisions.
The robot can adjust its grip to prevent harming the delicate laminated sheets thanks to force and torque sensors, which provide feedback on the pressure the gripper is applying.
The Safety Features:
Safety is, therefore, paramount when integrating robots into manufacturing processes. Features such as emergency stop buttons, safety cages, and light curtains are, consequently, standard safety measures designed to protect human workers and prevent accidents. Moreover, the synergy of these robotic components is significantly transforming the transformer core-buildup process. With remarkable precision, unmatched speed, and the ability to work continuously, robots are not only improving efficiency but also significantly enhancing the overall quality of transformer cores. Furthermore, as technology continues to advance rapidly, we can, undoubtedly, expect even more sophisticated robotic systems to further optimize transformer manufacturing processes, thereby contributing to a more reliable and efficient energy infrastructure.
Conclusion
Robotic automation is transforming the core build-up process of transformer laminate sheets, making it more efficient, precise, and cost-effective. As the demand for electricity continues to rise, the adoption of robotic automation in transformer manufacturing is becoming increasingly crucial. With the potential to improve product quality, increase production rates, and reduce labour costs, the future of transformer manufacturing looks promising, thanks to robotics. Manufacturers who embrace this technology stand to gain a competitive edge in the evolving energy landscape.
