Abutments are crucial for holding up and bracing large structural components.
How Abutments Transfer Loads Safely

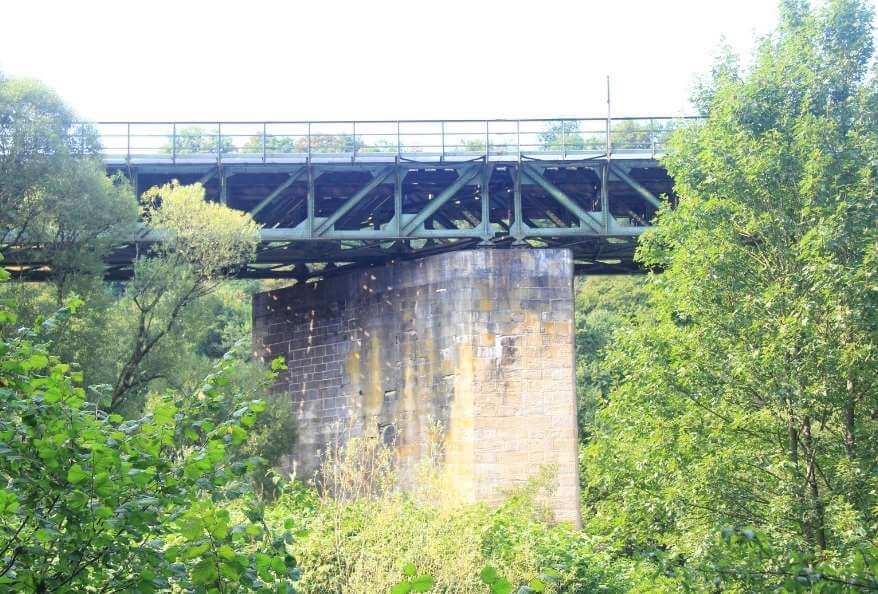

Image Source: Canva
Abutments are used in construction to support the vertical ends of a bridge or building. They provide security to the foundations along with the secure transfer of loads. Understanding how these components distribute weight can enhance our understanding of their importance in structural safety.
Purpose of Abutments
Every building requires stable holding at the ends or corners. An abutment is used to anchor the structure and bear its weight. They stop movement and transfer forces to the ground more evenly.
Load Distribution Basics
Various forces influence bridges, including vertical loads from their own weight and horizontal loads from wind or moving vehicles. Abutments play a crucial role in managing these forces by effectively transferring them to the foundation below, ensuring the bridge remains stable and secure.
Transferring Vertical Loads
Vertical loads, which can be the weight of vehicles or pedestrians, move vertically throughout the structure. These forces are absorbed and transferred to the earth through the abutments. The procedure causes the structure to maintain a level platform without sinking or tilting.
Handling Horizontal Forces
Wind and traffic exert sideways pressure on structures. Abutments counteract these horizontal forces, thereby preventing the structure from moving. These always help them stay on, so they can never fall off their position, even when blown by strong winds or hit by solid objects.
Foundation Support
The foundation is what makes an abutment stable. Engineers must ensure that the foundation firmly and securely supports all anticipated loads. Abutments help counter differential settlement or ground movement by distributing loads over a wider area.
Materials Used in Abutments
Abutments must be robust and durable. Common materials like reinforced concrete, stone, and brick may develop fine cracks over time, yet they are designed to endure significant pressure and require minimal upkeep for extended periods.
Shape and Design Considerations
The form of an abutment influences its performance in load-bearing. There are plenty of designs out there, but engineers select the ones most appropriate for their particular projects. For instance, sloped or stepped faces assist in depositing earth pressure and minimize cracking tendency.
Connection to Superstructures
Abutments are attached directly to the bridge or other structure. That connection needs to be secure to enable the safe transfer of the journey load. They may utilize special joints or bearings to allow for movement caused by thermal expansion or traffic.
Managing Soil Pressure
Soil pushes back at all times against an abutment. A tank, on proper design, would consider this pressure and make provisions where possible to allow for drainage so that water is not built up behind the wall. Draining water prevents soil erosion by not increasing pressure after soaking.
Protection from Environmental Effects
Due to their crucial function, abutments endure constant exposure to water, temperature fluctuations, and even chemical assaults from de-icing salts. Their wear-over time can be preserved by protective coatings and recurrent inspection. Engineers treat areas subject to these conditions more carefully.
Role in Earthquake Resistance
Abutments must withstand and react to sudden forces in seismic areas. They are specially reinforced so that they absorb these shocks without failing. The flexible connections between the abutment and structure permit some motion due to seismic movements.
Maintenance and Inspection
Frequent checks are needed to see that abutments are not damaged. Routine inspections can detect small cracks, water leaks, or settlement issues early on. Prompt repairs stop them from having bigger problems in the future.
Benefits of Proper Load Transfer
Good abutments protect the full structure when they function properly. Uniform load transfer enhances the service life of a bridge or building. That reliability means we save time and money on fixing and replacing things.
Conclusion
Abutments are crucial for holding up and bracing large structural components. They are designed and constructed to safely transfer loads from the superstructure into the ground. But a structure must be stable in both vertical and horizontal directions, and this is where abutments play an essential role, keeping a structure safe for years to come. Thorough inspection and solid construction ensure that they have a long working life. Realizing these concepts makes it clear that abutments are the most important part of construction safety.
